Inter-Subject Correlation

What it answers. Which brain regions respond consistently across people to a shared naturalistic stimulus (a movie, a story)? There’s no explicit design matrix to model — instead, ISC uses other subjects’ responses as the model, asking where the stimulus drives a common, time-locked signal.

For the theory, see the ISC material in naturalistic-data. This tutorial runs one in nltools.

How it works. ISC runs in two stages, like a GLM’s first/second level:

Compute the cross-subject similarity per region. Either pairwise (correlate every pair of subjects, then summarize) or leave-one-out (correlate each subject against the mean of the others). LOO is larger because each subject is compared to a denoised group average.
Group inference on whether that similarity exceeds chance, via a permutation/bootstrap test that respects the temporal structure.

import warnings

import numpy as np
from joblib import Memory

from nltools.algorithms.inference.isc import isc_permutation_test
from nltools.data import BrainData
from nltools.mask import roi_to_brain_from_atlas
from nltools.templates import fetch_resource

memory = Memory(".cache/tutorials", verbose=0)
warnings.filterwarnings("ignore", message="Cannot detect name collisions")

How to do it¶

We use nilearn’s development_fmri dataset — children and adults watching the same short Pixar movie. For each subject we extract a region-mean timeseries with the bundled k50 atlas, giving one (timepoints, regions) array per subject; stacking them is the (timepoints, subjects, regions) input ISC expects. (In a full analysis you’d regress the provided confounds first.)

from nilearn.datasets import fetch_development_fmri

N_SUBJECTS = 12
DATA = fetch_development_fmri(n_subjects=N_SUBJECTS, verbose=0)

ATLAS = fetch_resource("masks/default/3mm-MNI152-2009fsl-k50.nii.gz")

@memory.cache
def region_timeseries(n_subjects):
    """Region-mean timeseries per subject (slow load; cached to disk)."""
    # extract_roi returns (n_regions, n_timepoints); transpose to (time, region).
    return [BrainData(DATA.func[i]).extract_roi(ATLAS).T for i in range(n_subjects)]

series = region_timeseries(N_SUBJECTS)
isc_data = np.stack(series, axis=1)  # (timepoints, subjects, regions)
print(f"ISC input: {isc_data.shape}  (timepoints, subjects, regions)")

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

/home/runner/work/nltools/nltools/nltools/data/braindata/io.py:568: UserWarning:
Data resolution (4.000mm) doesn't exactly match template: default 3mm.
  data_img = detect_and_update_mask(bd, data_img)

/home/runner/work/nltools/nltools/nltools/data/braindata/analysis.py:615: FutureWarning: boolean values for 'standardize' will be deprecated in nilearn 0.15.0.
Use 'zscore_sample' instead of 'True' or use 'None' instead of 'False'.
  out = labels_masker.fit_transform(data_4d)

ISC input: (168, 12, 50)  (timepoints, subjects, regions)

Compute ISC + group inference¶

isc_permutation_test does both stages in one call: it computes the per-region ISC (summary_statistic="pairwise") and returns a permutation p-value per region.

pairwise = isc_permutation_test(
    isc_data,
    summary_statistic="pairwise",
    summary="median",
    n_permute=1000,
    random_state=0,
    progress_bar=False,
)
isc_values = np.asarray(pairwise["isc"])
p_values = np.asarray(pairwise["p"])
print(
    f"pairwise ISC — median {np.median(isc_values):.3f}, max {isc_values.max():.3f}"
)
print(
    f"regions significant (p < 0.05): {(p_values < 0.05).sum()} / {isc_values.size}"
)

pairwise ISC — median 0.067, max 0.307
regions significant (p < 0.05): 6 / 50

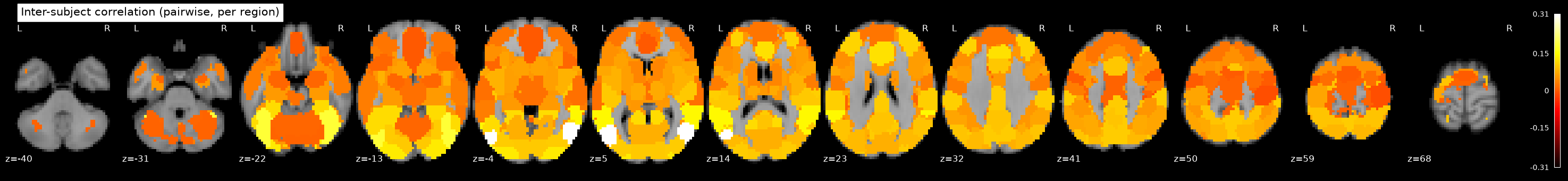

Paint the per-region ISC back onto the brain with roi_to_brain_from_atlas. Sensory regions that track the movie’s audio and visuals should show the highest synchrony:

from nilearn.image import math_img

brain_mask = math_img("img > 0", img=ATLAS)  # binary mask defining the output grid
isc_map = roi_to_brain_from_atlas(isc_values, atlas=ATLAS, source_mask=brain_mask)
isc_map.plot(
    method="slices",
    title="Inter-subject correlation (pairwise, per region)",
    cmap="hot",
    colorbar=True,
)

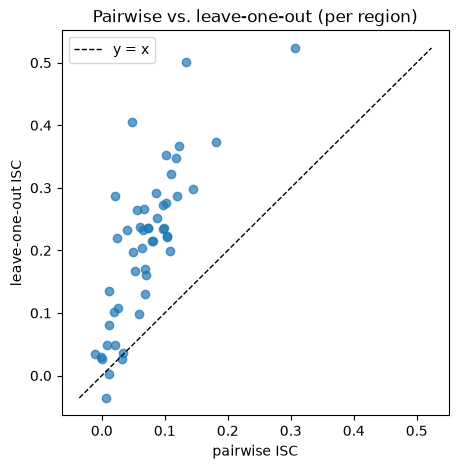

Pairwise vs. leave-one-out¶

The two summary statistics rank regions almost identically, but LOO values are systematically larger — each subject is compared against a less noisy group mean:

import matplotlib.pyplot as plt

loo = isc_permutation_test(
    isc_data,
    summary_statistic="leave-one-out",
    summary="median",
    n_permute=1000,
    random_state=0,
    progress_bar=False,
)
loo_values = np.asarray(loo["isc"])

fig, ax = plt.subplots(figsize=(5, 5))
ax.scatter(isc_values, loo_values, alpha=0.7)
lims = [
    min(isc_values.min(), loo_values.min()),
    max(isc_values.max(), loo_values.max()),
]
ax.plot(lims, lims, "k--", linewidth=1, label="y = x")
ax.set_xlabel("pairwise ISC")
ax.set_ylabel("leave-one-out ISC")
ax.set_title("Pairwise vs. leave-one-out (per region)")
ax.legend()
fig

Recap¶

Stage	What it does	Key API
Region timeseries	Extract region means per subject, stack to `(time, subjects, regions)`	`BrainData(func).extract_roi(atlas).T`
Compute + test	Per-region ISC + permutation p-value	`isc_permutation_test(data, summary_statistic="pairwise", n_permute=)`
Leave-one-out	Each subject vs. the group mean	`summary_statistic="leave-one-out"`
Project to brain	Paint per-region values onto voxels	`roi_to_brain_from_atlas(values, atlas=, source_mask=)`

Next steps

GLM analysis — model a known design instead of using subjects as each other’s model.
Encoding models — predict brain activity from explicit stimulus features.
Multivariate pattern analysis — decode conditions and compare representational geometry.
